RoboticLab

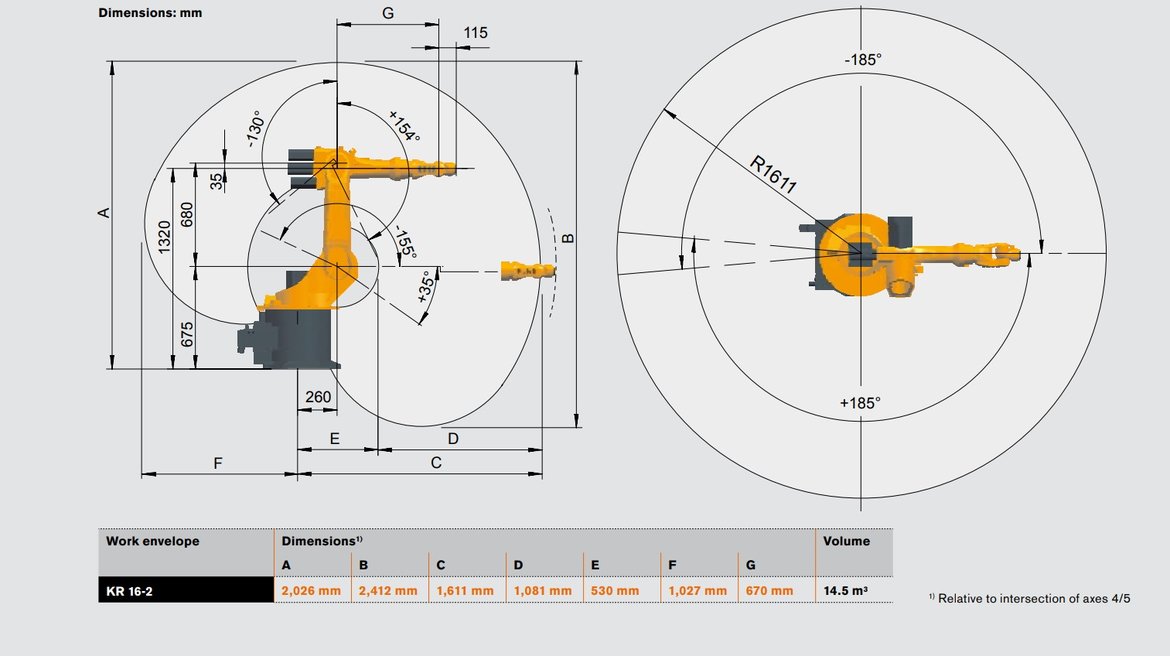

 Robot KUKA KR16/2

• 6-Ache - Industrial  Robot
• 16 kg Flangload
• Working radius 1611 mm
• Schunk tool changer
• Maximum velocity v_max = 2 m/s

Turn Table KUKA KP1-MD 250

• Horizontal Rotation
• Maximum load 250 kg
• 1000 mm x 1000 mm T-Slot Table
• Maximum Velocity v_max = 3,5 s/360°

Tools

• Spindle, Maximum speed n_max = 25000 min^-1, Speed adjustable
• Hot wire cutter 1400 mm x 350 mm
• Gripper, 80 mm Wide
• Prägedorn, 200 mm Länge

Programming Softwares

• Parametric programming with Rhino/Grasshopper, KUKAprc
• 3D-Milling programing with RoboDK and Autodesk Fussion 360

We basically differentiate the possible manufacturing processes into the areasa) pure confection (cutting, drilling, contour milling, cutting with hot wire)b) forming (embossing)c) abrasive shaping (multi-axis form milling, hot wire cutting)d) additive shaping (3D printing) - granulate extruder is not yet available, but will be available shortly.The following tools are available for the above-mentioned processes, which can be used to process a wide variety of materials (wood / plastics / aluminum / polystyrene / textiles) and types of semi-finished products (plates / sheets / pipes / blocks):-

• Milling spindle (variable speed, different cutter geometries and sizes)
• hot wire cutter (140 x 30 cm)
• Pneumatic gripper for "pick & place" processes
• As well as "custom made" tools (e.g. cutting textiles, embossing metal sheets, etc.)
